Introducing 10 new features in Quarkus Tools for Visual Studio Code

Quarkus Tools for Visual Studio Code version 1.3.0 has been released on the VS Code Marketplace to start off the new year. As Quarkus continues to introduce improvements and new features like application.yaml and server-side templating support, Quarkus Tools for Visual Studio Code continues to evolve to accompany these new features and improvements.

For a list of all changes, please refer to the changelog.

You can also watch a demo video of all the features presented in this article.

New features

The new features added to Quarkus Tools for Visual Studio Code 1.3.0 include:

• A new URL CodeLens for RESTEasy JAX-RS GET methods.
• Hover support for @ConfigProperty name in Java sources.
• MicroProfile properties support for the REST Client.
• Kubernetes, Red Hat OpenShift, Docker, and S2I property support.
• A Quick Fix to add unknown property namespaces to ignore.
• Go to definition support for enum values from application.properties.
• YAML support (experimental).
• A new extension descriptions toggle button.
• Different ways to open a new Quarkus project.
• Syntax highlighting for Qute languages.

URL CodeLens for RESTEasy JAX-RS GET methods

When editing a resource class while the current Quarkus application is running in development mode (./mvnw compile quarkus:dev or ./gradlew quarkusDev), there are now CodeLenses that provide the URL for the GET endpoints. This feature takes into account the pathname and the HTTP server port in your application.properties file in order to create the URL.

Clicking on the CodeLens URL opens this URL in your default browser, as shown in Figure 1.

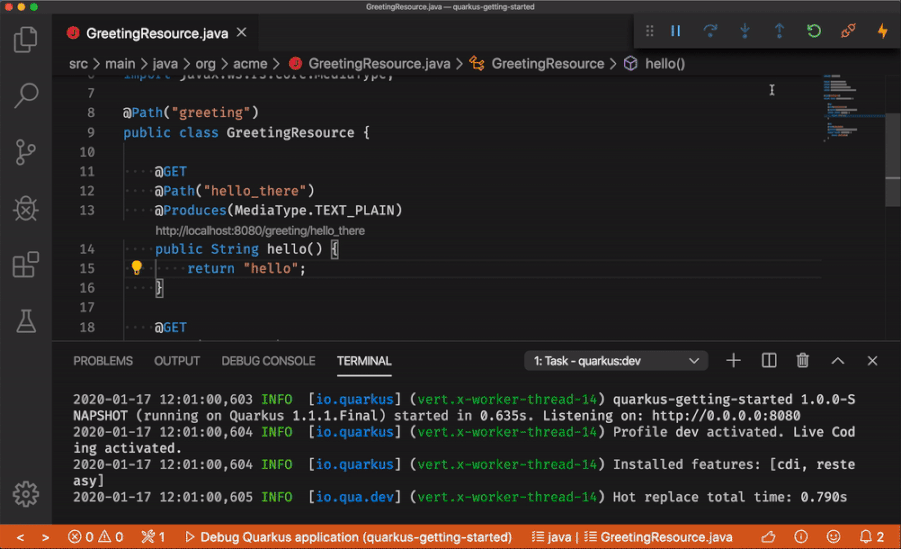

Figure 1: Clicking the CodeLens URL opens it in your default browser.">

Once the Quarkus application stops running, the CodeLens URL will no longer appear, as shown in Figure 2.

Figure 2: The CodeLens URL disappears once the Quarkus application stops running.">

Please keep in mind that CodeLenses in VS Code are only updated when certain events happen. If the URL CodeLens does not appear, there are two easy ways to trigger a CodeLens update: switch tabs or start typing in any file. Also, make sure that the quarkus.tools.codeLens.urlCodeLensEnabled VS Code setting is set to true.

Hover support for @ConfigProperty name in Java sources

Hovering over the name value in a @ConfigProperty annotation now displays the hovered property's value, as shown in Figure 3. Currently, the value either comes from application.properties file, or the default value field.

Figure 3: Hover over a @ConfigProperty annotation's name value to display the hovered property's value.">

MicroProfile properties support for the REST Client

There is now completion, hover, documentation, and validation for the MicroProfile properties from the REST Client. After registering a REST Client using @RegisterRestClient like so:

package com.mycompany.remoteServices;

@RegisterRestClient
public interface MyServiceClient {
    @GET
    @Path("/greet")
    String greet();
}

Language features will become available for the related MicroProfile config properties, as shown in Figure 4.

Figure 4: Language features for the new properties.">

More information about using the MicroProfile REST Client is available in the Quarkus guides here.

Kubernetes, Openshift, Docker, and S2I property support

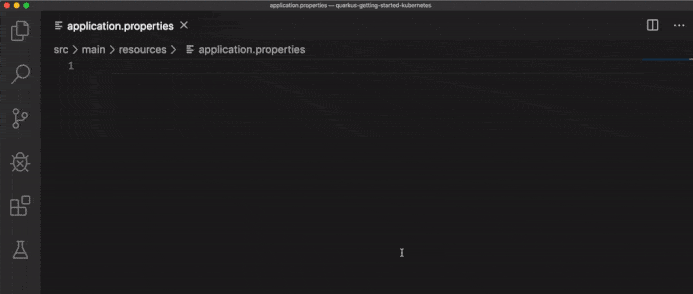

Likewise, there is now completion, hover, documentation, and validation for the kubernetes.*, openshift.*, docker.*, and s2i.* properties coming from the Kubernetes Quarkus extension, as shown in Figure 5.

Figure 5: Languages features for the new properties.">

In-depth documentation about generating Kubernetes resources and the config properties involved can be found in the Quarkus guides here.

Quick Fix to add unknown property namespaces to ignore

There is now a new Quick Fix that helps you exclude large groups of unknown properties from unknown property validation, as long as they share the same parent namespace. For example, if your application.properties file contains four properties with an unknown property error, like so:

# All four properties cause an 'Unknown property' error
unknown.test1=a
unknown.test2=b
unknown.test3=c
unknown.test4=d

Ignoring all four properties from unknown property validation is easily done with the Quick Fix, which adds unknown.* to the quarkus.tools.validation.unknown.excluded workspace configuration array, as shown in Figure 6.

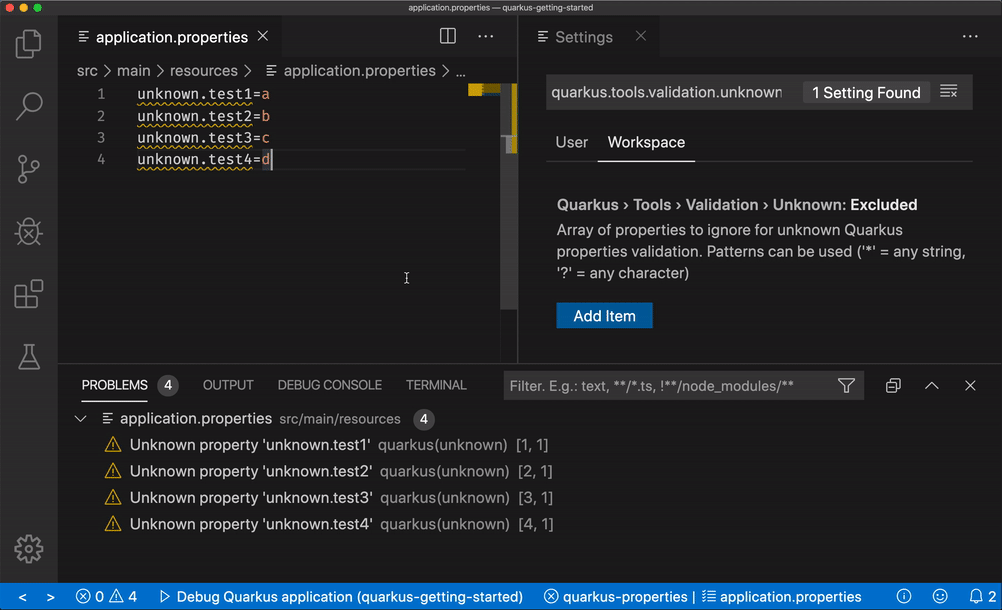

Figure 6: Ignoring properties from unknown property validation.">

Go to definition support for enum values from application.properties

Up until now, Go to definition was only supported for config property keys and not their values. This release brings the Go to definition feature for enum values, as shown in Figure 7.

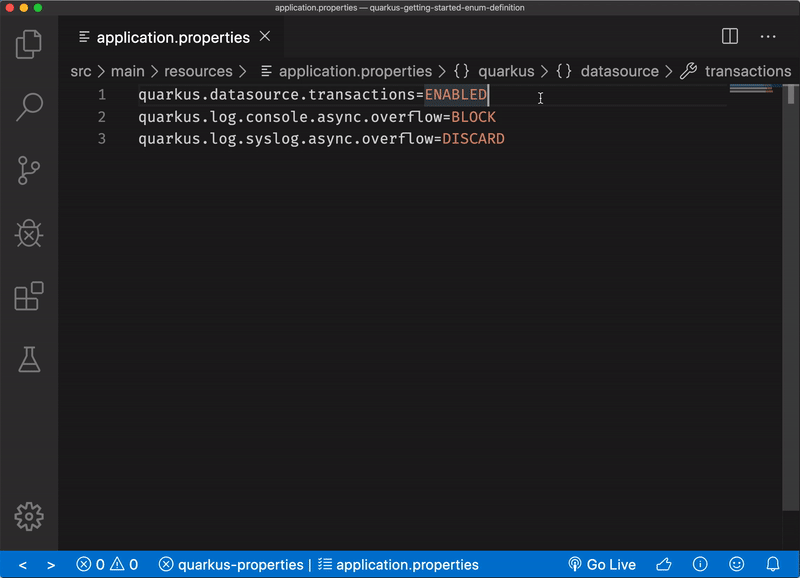

Figure 7: Using the Go to definition feature with enum values.">

YAML support (experimental)

The release of Quarkus 1.1.0.Final, brought YAML configuration support, meaning that you can now configure your Quarkus application with either an application.yaml file or an application.properties file (but try to stick with one or the other).

As a result, there is now completion support for application.yaml files, as shown in Figure 8. Similar to application.properties, the completion options in application.yaml file will be in sync with the Quarkus extensions that are available to the current project at the time (in pom.xml or build.gradle), therefore giving you only the relevant completion options.

This feature depends on the YAML Language Support by Red Hat extension. If it is not currently installed, a new prompt will propose to install it.

Figure 8: New completion support for the application.yaml file.">

Language feature support for application.yaml files is in its experimental stages. Compared to application.properties support, there are missing features:

• Go to definition support.
• Code action support.
• Automatic completion for default values.
• Limited config property and value validation support.

A new extension descriptions toggle button

As the number of Quarkus extensions continues to rise, the new extension descriptions in the extension selection prompt help you recognize and discover new extensions, as shown in Figure 9. The extension selection prompt appears when selecting Quarkus extensions from the Quarkus: Generate a Quarkus project and Quarkus: Add extensions to current project wizards.

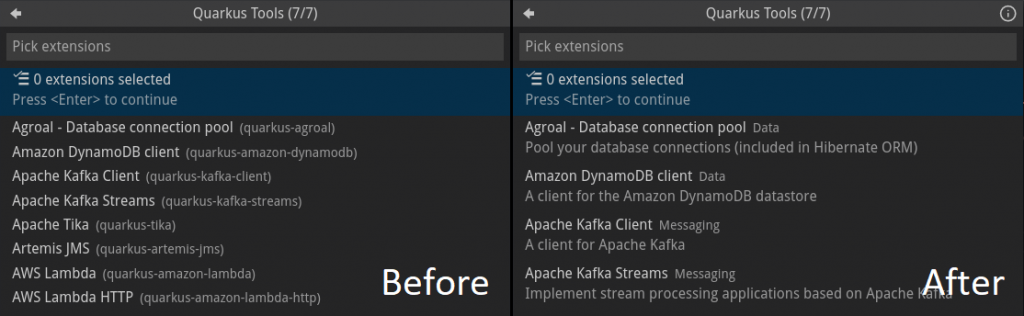

Figure 9: Discover new extensions with the new descriptions.">

There is also a new button on the top right of the selection box that toggles whether or not the extension descriptions should appear, as shown in Figure 10.

Figure 10: Toggle whether or not extension descriptions should appear.">

Different ways to open a new Quarkus project

After creating a new project with the Quarkus: Generate a Quarkus project wizard, there is now a new prompt that asks how the new project should be opened. The following before and after diagrams describe the changes:

Figure 11: (Before) Scenarios and options provided when generating a new Quarkus project."> Figure 12: (After) Scenarios and options provided when generating a new Quarkus project.">

To help visualize one of the possible scenarios, Figure 13 shows the options presented when generating a project while a workspace is open.

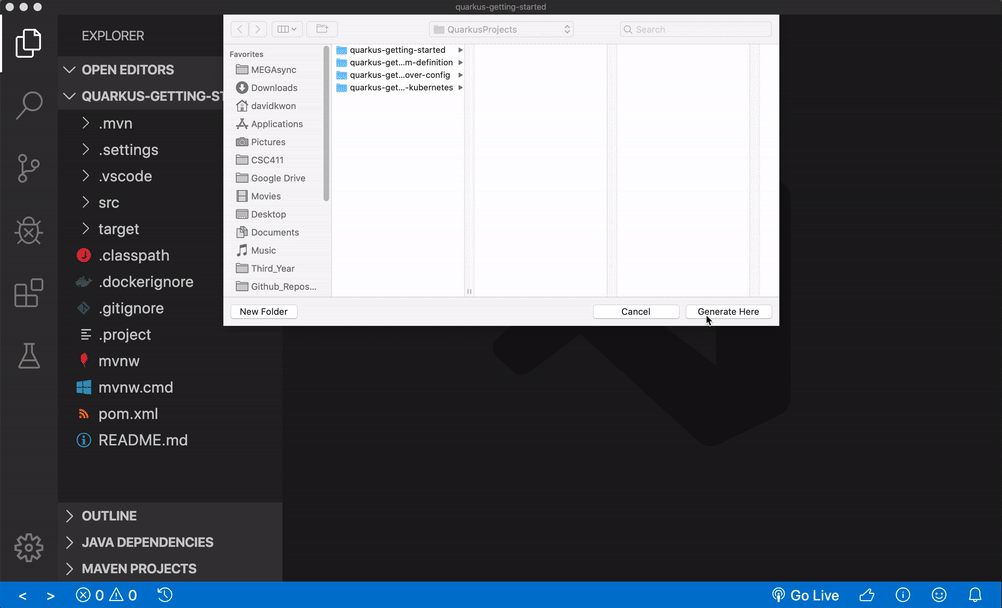

Figure 13: Creating a new project with the Quarkus: Generate a Quarkus project wizard.">

Syntax highlighting for Qute languages

Qute is a new server-side templating engine created with Quarkus in mind. This release brings new Qute language modes in VS Code: Qute HTML, Qute JSON, Qute YAML, and Qute Text. These new language modes are automatically applied to your current file if your file’s extension is .qute.html, .qute.json, .qute.yaml, or .qute.txt respectively.

Thanks to the new language modes, Qute-specific syntax highlighting and commenting are now provided, as shown in Figure 14.

Figure 14: Qute-specific syntax highlighting and commenting.">

For more information about the Qute templating engine, please refer to the Quarkus templating engine guide.

Moving forward

This wraps up the new major features in this release. If you have any suggestions or feedback, please feel free to open a GitHub issue.

For future releases, alongside general enhancements, we aim to bring more robust language feature support for application.yaml and Qute languages. Stay tuned for the next release!
