Microservices Patterns With Envoy Proxy, Part II: Timeouts and Retries

June 1, 2017
Christian Posta
Related topics:
Microservices
Related products:
Red Hat build of Quarkus

Share:

    This blog is part of a series looking deeper at Envoy Proxy and Istio.io and how it enables a more elegant way to connect and manage microservices. Follow me @christianposta to stay up with these blog post releases. I think the flow for what I cover over the next series will be something like:

    • What is Envoy Proxy, how does it work?
    • How to implement some of the basic patterns with Envoy Proxy?
    • How Istio Mesh fits into this picture?
    • How Istio Mesh works, and how it enables higher-order functionality across clusters with Envoy?
    • How Istio Mesh auth works?

    Here’s the idea for the next couple of parts (will update the links as they’re published):

    • Circuit breakers (Part I)
    • Retries/Timeouts (Part II)
    • Distributed Tracing (Part III)

    Part II - Timeouts and Retries with Envoy Proxy

    The first blog post introduced you to Envoy Proxy’s implementation of circuit-breaking functionality. In this second part, we’ll take a closer look at how to enable additional resilience features like timeouts and retries. These demos are intentionally simple so that I can illustrate the patterns and usage individually. Please download the source code for this demo and follow along!

    This demo is composed of a client and a service. The client is a Java http application that simulates making http calls to the “upstream” service (note, we’re using Envoys terminology here, and throughout this repo). The client is packaged in a Docker image named docker.io/ceposta/http-envoy-client:latest. Alongside the http-client Java application is an instance of Envoy Proxy. In this deployment model, Envoy is deployed as a sidecar alongside the service (the http client in this case). When the http-client makes outbound calls (to the “upstream” service), all the calls go through the Envoy Proxy sidecar.

    The “upstream” service for these examples is httpbin.org. httpbin.org allows us to easily simulate HTTP service behavior. It’s awesome, so check it out if you’ve not seen it.

    Envoy Proxy

    The retries and timeouts demos have their own envoy.json configuration file. I definitely recommend looking at the reference documentation for each section of the configuration file to help understand the full configuration. The good folks at datawire.io also put together a nice intro to Envoy and its configuration, which you should check out too.

    Running the retries demo

    For the retries demo, we’ll be configuring our routing in Envoy like this:

      "routes": [
        {
          "timeout_ms": 0,
          "prefix": "/",
          "auto_host_rewrite": true,
          "cluster": "httpbin_service",
          "retry_policy": {
            "retry_on": "5xx",
            "num_retries": 3
          }

        }

    Here we’re saying to retry up to 3 times on HTTP status of 5xx.

    If you’ve run previous demos, please make sure to get a clean start for this (or any) demo. We have different Envoy configurations for each demo and want to make sure we start from a clean slate each time.

    First, stop any existing demos:

    ./docker-stop.sh

    Now let’s get our retries demo up:

    ./docker-run.sh -d retries

    Now let’s exercise the client with a single call which will hit an HTTP endpoint that should return an HTTP 500 error. We’ll use the curl.sh script, which is set up to call curl inside our demo container.

    ./curl.sh -vvvv localhost:15001/status/500

    We should see something like this:

    * Hostname was NOT found in DNS cache
    *   Trying ::1...
    * connect to ::1 port 15001 failed: Connection refused
    *   Trying 127.0.0.1...
    * Connected to localhost (127.0.0.1) port 15001 (#0)
    > GET /status/500 HTTP/1.1
    > User-Agent: curl/7.35.0
    > Host: localhost:15001
    > Accept: */*
    >
    < HTTP/1.1 500 Internal Server Error
    * Server envoy is not blacklisted
    < server: envoy
    < date: Thu, 25 May 2017 05:55:37 GMT
    < content-type: text/html; charset=utf-8
    < access-control-allow-origin: *
    < access-control-allow-credentials: true
    < x-powered-by: Flask
    < x-processed-time: 0.000718116760254
    < content-length: 0
    < via: 1.1 vegur
    < x-envoy-upstream-service-time: 684
    <
    * Connection #0 to host localhost left intact

    Great! Now, let’s check what Envoy has done for us:

    ./get-envoy-stats.sh | grep retry
    cluster.httpbin_service.retry.upstream_rq_500: 3
    cluster.httpbin_service.retry.upstream_rq_5xx: 3
    cluster.httpbin_service.upstream_rq_retry: 3
    cluster.httpbin_service.upstream_rq_retry_overflow: 0
    cluster.httpbin_service.upstream_rq_retry_success: 0

    Yay! We see here that envoy has retried 3 times because of HTTP 500 errors.

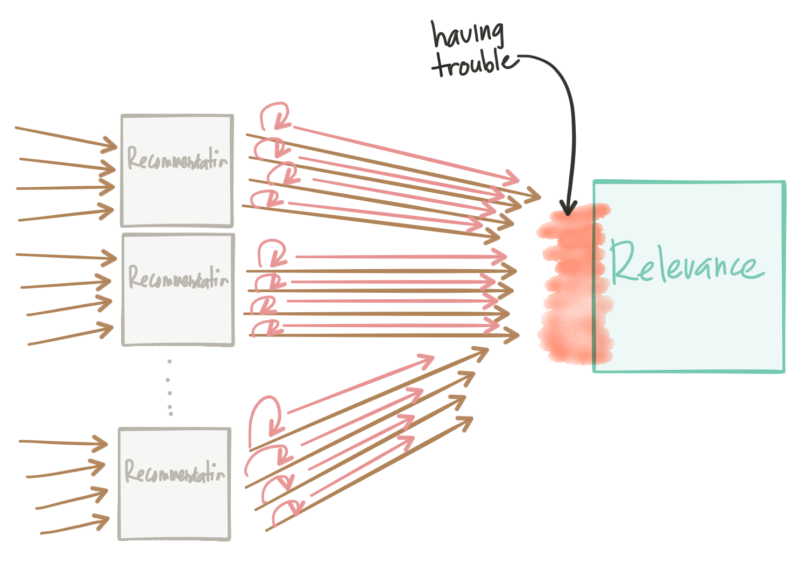

    Retries can have harmful effects on your service architectures if treated naïvely. They can help propagate failures or cause DDoS type attacks on internal services that may be struggling.

    Some things to keep in mind about retries:

    • Envoy will do automatic exponential retry with jittering. See docs for more.
    • You can set retry timeouts (timeout for each retry), but the overall route timeout (configured for the routing table; see the timeouts demo for the exact configuration) will still hold/apply; this is to short circuit any run away retry/exponential back off.
    • You should always set the circuit breaker retry configuration to limit the amount of quota for retries when you may have large numbers of connections. See the active retries in the circuit breaker section in the Envoy documentation.

    Running the timeouts demo

    For the timeouts demo, we’ll be configuring our routing in Envoy like this:

      "routes": [
        {
          "timeout_ms": 0,
          "prefix": "/",
          "auto_host_rewrite": true,
          "cluster": "httpbin_service",
          "timeout_ms": 3000
        }

    This configuration is setting a global (i.e., includes all retries) 3s timeout for any calls made through this route to the httpbin_service cluster.

    Whenever dealing with timeouts we must be aware of the overall global timeout for requests that originate at the edge. We can find ourselves in very difficult to debug situations where timeouts don’t taper, as we get deeper into the network call graph. In other words, as you go through the call graph, the service timeouts for service calls deeper in the call graph should be smaller than the previous service’s calls:

    Envoy can help propagate timeout information, and protocols like gRPC can propagate deadline information. As we continue along with this series, we’ll see how we can control the Envoy proxies with Istio Mesh and a control plane can help us do fault injection to uncover timeout anomalies.

    If you’ve run previous demos, please make sure to get a clean start for this (or any) demo. We have different Envoy configurations for each demo and want to make sure we start from a clean slate each time.

    First stop any existing demos:

    ./docker-stop.sh

    Now let’s get our timeouts demo up:

    ./docker-run.sh -d timeouts

    Now let’s exercise the client with a single call which will hit an HTTP endpoint that should delay the response by about 5s. This delay should be enough to trigger the envoy timeout. We’ll use the curl.sh script which is set up to call curl inside our demo container.

    ./curl.sh -vvvv localhost:15001/delay/5

    We should see output similar to this:

    * Hostname was NOT found in DNS cache
    *   Trying ::1...
    * connect to ::1 port 15001 failed: Connection refused
    *   Trying 127.0.0.1...
    * Connected to localhost (127.0.0.1) port 15001 (#0)
    > GET /delay/5 HTTP/1.1
    > User-Agent: curl/7.35.0
    > Host: localhost:15001
    > Accept: */*
    >
    < HTTP/1.1 504 Gateway Timeout
    < content-length: 24
    < content-type: text/plain
    < date: Thu, 25 May 2017 06:13:53 GMT
    * Server envoy is not blacklisted
    < server: envoy
    <
    * Connection #0 to host localhost left intact
    upstream request timeout

    We see that our request was timed out!

    Let’s check the Envoy stats:

    ./get-envoy-stats.sh | grep timeout

    Here we see 1 request (the one we sent in!) was timed out by Envoy.

    cluster.httpbin_service.upstream_cx_connect_timeout: 0
    cluster.httpbin_service.upstream_rq_per_try_timeout: 0
    cluster.httpbin_service.upstream_rq_timeout: 1
    http.admin.downstream_cx_idle_timeout: 0
    http.egress_http.downstream_cx_idle_timeout: 0

    If we send the request in, this time with a smaller delay, we should see the call go through:

    ./curl.sh -vvvv localhost:15001/delay/2
    * Hostname was NOT found in DNS cache
    *   Trying ::1...
    * connect to ::1 port 15001 failed: Connection refused
    *   Trying 127.0.0.1...
    * Connected to localhost (127.0.0.1) port 15001 (#0)
    > GET /delay/2 HTTP/1.1
    > User-Agent: curl/7.35.0
    > Host: localhost:15001
    > Accept: */*
    >
    < HTTP/1.1 200 OK
    * Server envoy is not blacklisted
    < server: envoy
    < date: Thu, 25 May 2017 06:15:41 GMT
    < content-type: application/json
    < access-control-allow-origin: *
    < access-control-allow-credentials: true
    < x-powered-by: Flask
    < x-processed-time: 2.00246119499
    < content-length: 309
    < via: 1.1 vegur
    < x-envoy-upstream-service-time: 2145
    <
    {
      "args": {},
      "data": "",
      "files": {},
      "form": {},
      "headers": {
        "Accept": "*/*",
        "Connection": "close",
        "Host": "httpbin.org",
        "User-Agent": "curl/7.35.0",
        "X-Envoy-Expected-Rq-Timeout-Ms": "3000"
      },
      "origin": "68.3.84.124",
      "url": "http://httpbin.org/delay/2"
    }
    * Connection #0 to host localhost left intact

    Also, note that Envoy propagates the timeout headers so that upstream services have an idea of what to expect.

    Series

    Please stay tuned! Part III tracing should be landing soon!
